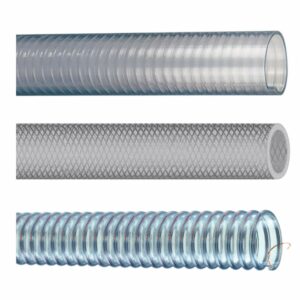

Rubberworxâ„¢ PVC & Urethane hoses designed to meet the most rigorous applications for a wide wet and dry food transfer applications. 3A and FDA PVC construction of hoses that will meet your requirements for weight, durability, or flexibility.
Heavy duty suction and discharge hose with an FDA PVC tube and cover with a static grounding wire along side a PVC helix. Designed for use with abrasives, water, light chemicals, powders, pellets and aqueous solutions. Corrugated cover design for improved flexibility.
Part Number
|
ID (in)
|
OD (in)
|
Pressure (psi)
|
Bend Radius
|
lbs/ft
|
---|---|---|---|---|---|
F017201-075
|
0.75
|
1
|
90
|
3
|
0.22
|
F017201-100
|
1
|
1.25
|
90
|
3
|
0.26
|
F017201-125
|
1.25
|
1.58
|
75
|
4
|
0.34
|
F017201-150
|
1.5
|
1.81
|
75
|
6
|
0.44
|
F017201-200
|
2
|
2.4
|
75
|
8
|
0.74
|
F017201-250
|
2.5
|
2.95
|
75
|
10
|
1.01
|
F017201-300
|
3
|
3.52
|
60
|
12
|
1.21
|
F017201-400
|
4
|
4.55
|
55
|
15
|
2.02
|
F017201-500
|
5
|
5.75
|
35
|
22
|
3.70
|
F017201-600
|
6
|
6.68
|
35
|
25
|
6.05
|
Heavy duty suction and discharge hose with an FDA PVC tube and cover with a static grounding wire along side a PVC helix. Designed for use with abrasives, water, light chemicals, powders, pellets and aqueous solutions. Corrugated cover design for improved flexibility.
Part Number
|
ID (in)
|
OD (in)
|
Pressure (psi)
|
Bend Radius
|
lbs/ft
|
---|---|---|---|---|---|
F018201-100
|
1
|
1.3
|
60
|
2
|
0.23
|
F018201-125
|
1.25
|
1.56
|
50
|
3
|
0.29
|
F018201-150
|
1.5
|
1.88
|
50
|
4
|
0.37
|
F018201-200
|
2
|
2.43
|
40
|
4
|
0.56
|
F018201-250
|
2.5
|
3.08
|
35
|
5
|
1.00
|
F018201-300
|
3
|
3.58
|
35
|
7
|
1.12
|
F018201-400
|
4
|
4.7
|
35
|
11
|
2.53
|
F018201-500
|
5
|
5.75
|
35
|
22
|
2.13
|
F018201-600
|
6
|
6.76
|
25
|
30
|
2.62
|
